Biotechnology Researchers Develop New Hydrogel That Enables Manufacture Of Ingestible Medical Devices That Are Broken Down By Light

Biotechnology researchers have created a new light-sensitive material could eliminate some of the endoscopic procedures needed to remove gastrointestinal devices.

Many medical devices can be inserted into the gastrointestinal tract to treat, diagnose, or monitor GI disorders. Many of these have to be removed by endoscopic surgery once their job is done. However, MIT biotechnology engineers have now come up with a way to trigger such devices to break down inside the body when they are exposed to light from an ingestible LED.

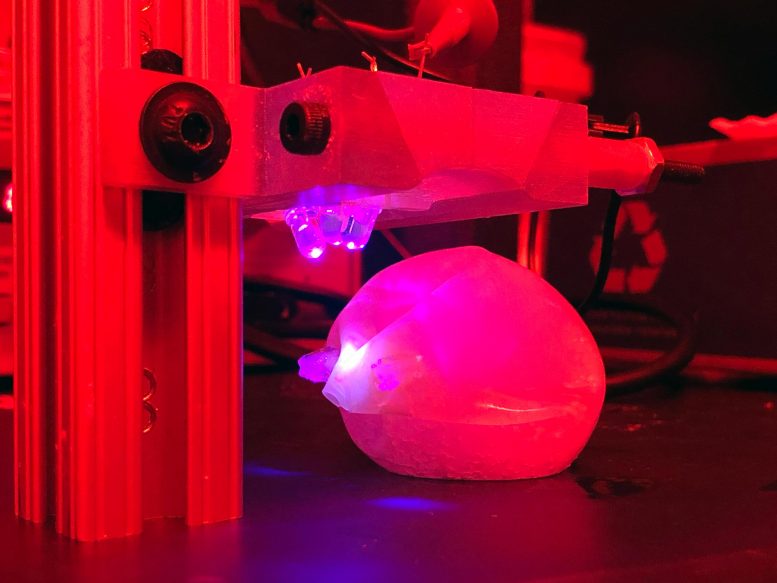

MIT biotechnology engineers demonstrated a bariatric balloon that can be inflated in the stomach and then degraded by
shining light on the seal, which is made of a novel light-sensitive polymer. Credit: Ritu Raman

The novel approach is based on a light-sensitive hydrogel that the researchers designed. Incorporating this material into medical devices could avoid many endoscopic procedures and would give doctors a faster and easier way to remove devices when they are no longer needed or are not functioning properly, the researchers say.

Dr Giovanni Traverso, an Assistant Professor of mechanical engineering and also a gastroenterologist at Brigham and Women’s Hospital, and the senior author of the study told Thailand Medical News, “We are developing a set of systems that can reside in the gastrointestinal tract, and as part of that, we’re looking to develop different ways in which we can trigger the disassembly of devices in the GI tract without the requirement for a major procedure.”

In research in pigs, the researchers showed that devices made with this light-sensitive hydrogel can be triggered to break down after being exposed to blue or ultraviolet light from a small LED.

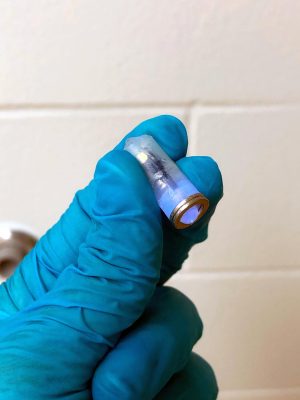

An ingestible LED like this could be swallowed to expose light-sensitive
medical devices to light, helping them to break down in the body.Credit: Ritu Raman

Dr Ritu Raman, a postdoc at MIT’s Koch Institute for Integrative Cancer Research, is the lead author of the paper, which appears  in Science Advances. Other authors of the paper are former technical associates Tiffany Hua, Jianlin Zhou, Tina Esfandiary, and Vance Soares; technical associates Declan Gwynne, Joy Collins, and Siddartha Tamang; graduate student Simo Pajovic; Division of Comparative Medicine veterinarian Alison Hayward; and David H. Koch Institute Professor Dr Robert Langer.

In the past, Dr Traverso and Dr Langer have devel oped many ingestible devices designed to remain in the GI tract for extended periods of time. They have also worked on a variety of strategies to control the breakdown of such devices, including methods based on changes in pH or temperature, or exposure to certain chemicals.

Dr Traverso added, “Given our interests in developing systems that can reside for prolonged periods in the gastrointestinal tract, we continue to investigate a range of approaches to facilitate the removal of these systems in the setting of adverse reaction or when they are no longer needed. We’re really looking at different triggers and how they perform, and whether we can apply them to different settings.”

The researchers explored a light-based trigger in the study, which they believed could offer some advantages over their earlier approaches. One potential advantage is that light can act at a distance and doesn’t need to come into direct contact with the material being broken down. Also, light normally does not penetrate the GI tract, so there is no chance of accidental triggering.

To develop the new material, Dr Raman designed a light-sensitive hydrogel based on a material developed in the lab of Kristi Anseth, a former Langer lab postdoc who is now a professor of chemical and biological engineering at the University of Colorado at Boulder. This polymer gel includes a chemical bond that is broken when exposed to a wavelength of light between 405 and 365 nanometers (blue to ultraviolet).

Dr Raman decided that instead of making a material composed exclusively of that light-sensitive polymer, she would use it to link together stronger components such as polyacrylamide. This makes the overall material more durable but still allows it to break apart or weaken when exposed to the right wavelength of light. She also constructed the material as a “double network,” in which one polymer network surrounds another.

Dr Raman added, “You’re forming one polymer network and then forming another polymer network around it, so it’s really entangled. That makes it very tough and stretchy,”

It was observed that the material’s properties can be tuned by varying the composition of the gel. When the light-sensitive linker makes up a higher percentage of the material, it breaks down faster in response to light but is also mechanically weaker. The researchers can also control how long it takes to break down the material by using different wavelengths of light. Blue light works more slowly but poses less risk to cells that are sensitive to damage from ultraviolet light.

The new gel and its breakdown products are biocompatible, and the gel can be easily molded into a variety of shapes. In this study, the researchers used it to demonstrate two possible applications: a seal for a bariatric balloon and an esophageal stent. Standard bariatric balloons, which are sometimes used to help treat obesity, are inflated in a patient’s stomach and filled with saline. After about six months, the balloon is removed by endoscopic surgery.

The bariatric balloon that the MIT team designed can be deflated by exposing the seal to a tiny LED light, which would in principle be swallowed and then pass out of the body. Their balloon is made of latex and filled with sodium polyacrylate, which absorbs water. In this study, the researchers tested the balloons in pigs and found that the balloons swelled up as soon as they were placed in the stomach. When a small, ingestible LED emitting blue light was placed in the stomach for about six hours, the balloons slowly deflated. With a higher-power light, the material broke down within 30 minutes.

The biotechnology researchers also molded the light-sensitive gel into an esophageal stent. Such stents are sometimes used to help treat esophageal cancer or other disorders that cause a narrowing of the esophagus. A light-triggerable version could be broken down and passed through the digestive tract when no longer needed.

Besides these two applications, this approach could be used to create other kinds of degradable medical devices, such as vehicles for delivering drugs to the gastrointestinal tract, according to the researchers.

Dr Traverso added, “This study is a proof of concept that we can create this kind of material, and now we’re thinking about what are the best applications for it,”

Reference: “Light-degradable hydrogels as dynamic triggers for gastrointestinal applications” by Ritu Raman, Tiffany Hua, Declan Gwynne, Joy Collins, Siddartha Tamang, Jianlin Zhou, Tina Esfandiary, Vance Soares, Simo Pajovic, Alison Hayward, Robert Langer and Giovanni Traverso, 17 January 2020, Science Advances.
DOI: 10.1126/sciadv.aay0065
