MIT Researchers Develop New Quick And Accurate Medical-Image Analysis Platform

Researchers From Massachusetts Institute Of Technology (MIT) have devised a method that accelerates the process for creating and customizing templates used in medical-image analysis, to guide faster and more accurate disease diagnosis.

Typically, use of medical image analysis is to crunch datasets of patients’ medical images and capture structural relationships that may indicate the progression of diseases. In many cases, analysis requires use of a common image template, called an “atlas,” that’s an average representation of a given patient population. Atlases serve as a reference for comparison, for example to identify clinically significant changes in brain structures over time.

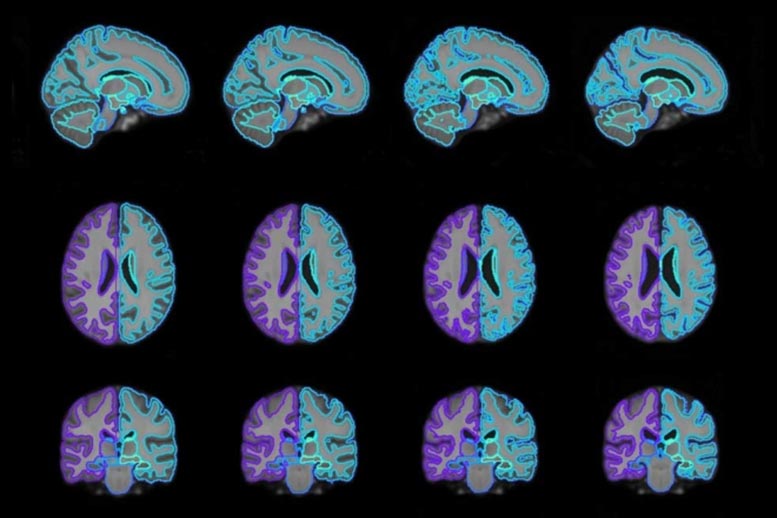

With their model, researchers were able to generate on-demand brain scan templates of various ages
(pictured) that can be used in medical-image analysis to guide disease diagnosis.

Developing a template is a time-consuming, laborious process, often taking days or weeks to generate, especially when using 3D brain scans. To save time, researchers often download publicly available atlases previously generated by research groups. But those don’t fully capture the diversity of individual datasets or specific subpopulations, such as those with new diseases or from young children. Ultimately, the atlas can’t be smoothly mapped onto outlier images, producing poor results.
In a study being presented at the Conference on Neural Information Processing Systems in December, the researchers describe an automated machine-learning model that generates “conditional” atlases based on specific patient attributes, such as age, sex, and disease. By leveraging shared information from across an entire dataset, the model can also synthesize atlases from patient subpopulations that may be completely missing in the dataset.

Dr Adrian Dalca, a former postdoc in the Computer Science and Artificial Intelligence Laboratory (CSAIL) and now a faculty member in radiology at Harvard Medical School and Massachusetts General Hospital and also the first author of the study told Thailand Medical News, “The world needs more atlases. Atlases are central to many medical image analyses. This method can build a lot more of them and build conditional ones as well.”

Also joining Dalca on the paper are Marianne Rakic, a visiting researcher in CSAIL; John Guttag, the Dugald C. Jackson Professor of Computer Science and Electrical Engineering and head of CSAIL’s Data Driven Inference Group; and Mert R. Sabuncu of Cornell University.

Conventional atlas-building methods run lengthy, iterative optimization processes on all images in a dataset. They align, say, all 3D brain scans to an initial (often blurry) atlas, and compute a new average image from the aligned scans. They repeat this iterative process for all images. This computes a final atlas that minimizes the extent to which all scans in the dataset must deform to match the atlas. Doing this process for patient subpopulations can be complex and imprecise if there isn’t enough data available.

When mapping an atlas to a new scan, it  generates a “deformation field,” which characterizes the differences between the two images. This captures structural variations, which can then be further analyzed. In brain scans, for instance, structural variations can be due to tissue degeneration at different stages of a disease.

In past work, Dalca and other researchers developed a neural network to rapidly align these images. In part, that helped speed up the traditional atlas-building process. “We said, ‘Why can’t we build conditional atlases while learning to align images at the same time?’” Dalca says.

In order to do so, the researchers combined two neural networks: One network automatically learns an atlas at each iteration, and another adapted from the previous research ,simultaneously aligns that atlas to images in a dataset. In training, the joint network is fed a random image from a dataset encoded with desired patient attributes. From that, it estimates an attribute-conditional atlas. The second network aligns the estimated atlas with the input image, and generates a deformation field.

The result deformation field generated for each image pair is used to train a “loss function,” a component of machine-learning models that helps minimize deviations from a given value. In this case, the function specifically learns to minimize distances between the learned atlas and each image. The network continuously refines the atlas to smoothly align to any given image across the dataset.

The final result is a function that’s learned how specific attributes, such as age, correlate to structural variations across all images in a dataset. By plugging new patient attributes into the function, it leverages all learned information across the dataset to synthesize an on-demand atlas  even if that attribute data is missing or scarce in the dataset.

If someone wants a brain scan atlas for a 45-year-old female patient from a dataset with information from patients aged 30 to 90, but with little data for women aged 40 to 50. The function will analyze patterns of how the brain changes between the ages of 30 to 90 and incorporate what little data exists for that age and sex. Then, it will produce the most representative atlas for females of the desired age. In their paper, the researchers verified the function by generating conditional templates for various age groups from 15 to 90.

The imaging researchers hope clinicians can use the model to build their own atlases quickly from their own, potentially small datasets. Dalca is now collaborating with researchers at Massachusetts General Hospital, for instance, to harness a dataset of pediatric brain scans to generate conditional atlases for younger children, which are hard to come by.

An ambition is to build one function that can generate conditional atlases for any subpopulation, spanning birth to 90 years old. Researchers could log into a webpage, input an age, sex, diseases, and other parameters, and get an on-demand conditional atlas. “That would be wonderful, because everyone can refer to this one function as a single universal atlas reference,” Dalca says.

Reference: “Learning Conditional Deformable Templates with Convolutional Networks” by Adrian Dalca, Marianne Rakic, John Guttag and Mert Sabuncu, Neural Information Processing Systems (NIPS).
