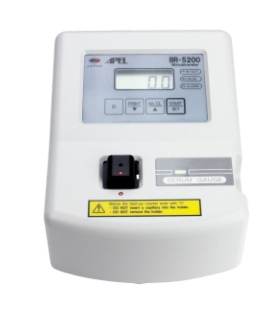

Max. one second measurement time.
BR-5200 has an RS-232C and a USB interface for connection with computer.
BR-5200 does not need a lamp replacement thanks to the LED light source.
Once BR-5200 is calibrated, no more daily calibration is required.
A sample gauge provided on the surface of BR-5200, which indicates the proper sample volume to be inspected.
Only simple action is required to set the capillary tube into the holder.
The dual wavelength measuring method of BR-5200 eliminates interference of hemolysis and turbidity.
BR-5200's foot print is small and weights only 0.9 kg.
|
Method |
Dual Wavelength (461 and 577 nm) |
|
Measurement Range |
0 - 30 mg/dL(Total bilirubin) |
|
Correcting hemolysis |
0 - 250 m/dL |
|
Measuring accuracy |
±5 % |
|
Sample Volume |
50 - 60 μL |
|
Display |
3 1/2 LCD display |
|
Sample Container |
Hematocrit capillary tube |
|
Light source |
High bright LED |
|
Detector |
High sensitivite silicon photocell |
|
Interface |
RS-232C, USB |
|
Power |
100 - 240 VAC 50/60 Hz AC adapter |
|
Dimensions |
150 (W) X 200 (D) X 100 (H) mm |
|
Weight |
Around 0.9 kg (main body) |
|
Standard solution(ABY) |
2 bottles |
|
Capillary tube(Heparinized, Red) |
1 vial(100 pcs) |
|
Capillary tube(Plain, Blue) |
1 vial(100 pcs) |
|
Clay sealer(Wax Plate) |
1 pc |
|
USB Cable |
1 pc |
|
PC software(CD-ROM) |
1 pc |
|
AC/DC power code |
1 pc |
|
Operation manual |
1 copy |
|
Printer for BR-5200 |
Serial type(with communication cable and AC/DC adapter) |
*Specifications and appearance are subject to change without notice.
