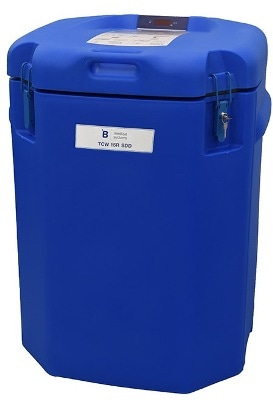

The new TCW 15R SDD is a solar direct drive vaccine refrigerator, specially designed for small size health centres, working straight from solar panels with no batteries and no regulator.
No Batteries and No Regulator
- Rotomoulded body construction: rust free and extremely robust
- 100 mm PU foam insulation guarantees highest possible hold over time
- Designed for tropical temperatures: +5 °C to +43 °C
- Digital temperature display with included power LED
- Temperature monitoring maintained in power failure periods
- Automatic drain water evaporation
Solar Generator – Plug & Play Installation
The TCW 15R SDD goes with one solar generator. It connects to the TCW 15R SDD by quick connectors – only one way works.
The solar generators are available in 2 versions:
- G 1 – roof installation without panel adjustment
- G 2 – roof installation with panel adjustment
Additional Information
|
Vaccine Storage Capacity (l) |
16 |
|
Hold Over Time (at +32 °C) |
123 h 30 min |
|
Hold Over Time (at +43 °C) |
87 h 48 min |
|
Autonomy Time (+2 °C to +8 °C) |
81 h 52 min at +43 °C |
|
External Dimensions (H x W x D) (mm) |
950 x 730 x 730 |
|
Shipping Dimensions H x W x D (mm) |
1088 x 770 x 778 |
|
Shipping Weight (kg) |
85 |
|
Outer Material |
Polyethylene |
|
Interior Material |
Polyethylene |
|
Insulation |
Polyethylene |
|
Insulation Thickness (mm) |
100 |
|
Temperature Class |
+10 °C – +43 °C ambient temperature (Climate zone: Hot) |
|
Refrigerant Type |
R600a |
|
Voltage (V) |
12 – 20 |
|
Energy Consumption (Kwh/24h) |
0.43 kWh / 24 h at +43 °C (cool down), 0.43 kWh / 24 h at +43°C (stable running) |
|
Icelining |
2 x 0.6 L PCM, 4 x 0.6 L, 4 x 3.2 L, Ice packs act as ice bank during power cuts |
|
Scope of Delivery |
1 x Basic Toolkit, 1 x Compass, 1 x Lockable lid, 2 x Spacers, 2 x Vaccine storage basket |
|
WHO Specifications |
E03/RF05.3 |
|
WHO Test Procedure |
E003/RF05-VP.3 |
|
PQS-Code |
E003/067 |
For more detals: https://www.bmedicalsystems.com/en/product/tcw-15r-sdd/
