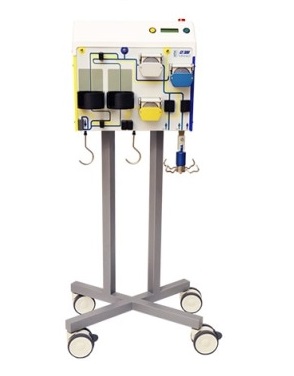

CF300 Plasma Adsorption Monitor from INFOMED

CF300 is adaptable to all columns and allows to treat numerous pathologies by such selective procedure.

CF300 it is:

• Plasma therapy for targeted removal
• Handles one or two columns operating alternatively
• Regenerates re-usable columns on-line
• Only 2 buttons, easy to use and requires few training
• Compact and cost effective

Fully compatible with all adsorption cartridges targetting for example:

• LDL apheresis
• ABO incompatibility
• Lp(a)
• IgG

CF300 can be used behind any plasma separator : centrifugation or filtration devices are possible

Technical Features

• Operations:
  Autopriming
  Regeneration
  Preservation
  Bag empty/full indication
  Pressure monitoring
  RS232 connection to a computer
• Scale range: 0-6 kg
• Dimensions: 35/50/125 cm
• Weight: 28 kg
• Max adsorption (plasma) flow: 6 l/h

CF300, Step by Step

1. Connect to plasma separator
2. Plasma is pumped through the column
3. When it is saturated, CF300 automatically swaps to the other one while regeneration begins
4. Above process is performed as much as requested
5. Treatment end: disconnect primary separator
6. Machine regenerates the columns and prepares them for preservation
