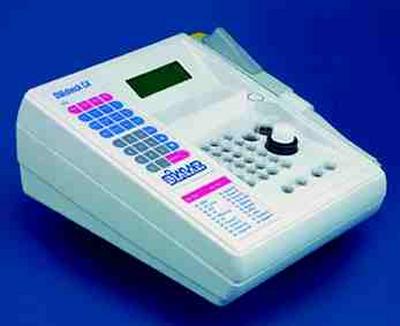

DIAcheck C4 Blood Coagulometer from Dialab

DIAcheck C4 is a 4-channel coagulometer for clotting, chromogenic and immunoturbidimetric assays. A thermal printer is externally attached to the instrument, which is a serial printer with print-out of system parameters and results in all selected dimensions

TECHNICAL SPECIFICATIONS:

• Tests: PT, aPTT, TT, FIB (Clauss and PT derived), Factor II, V, VII, VIII, IX, X, XI, XII, AT, PC, PS, HEP, STAT, APCR, PLG, D-DIMER, vWF, ECAH, ECAT, a2AP, LA-S, LA-C
• Sample: Plasma
• Volumes: Quarter of regul. Vol., (PT: 25 µl sample + 50 µl reagent)
• Results in: Secs., INR, %, Ratio, mg/dL, g/L, ng/mL
• Optic Cell: Photometer with pulsed 405 nm LEDs
• Incubation Block: 2x 2 measuring pos., 12x 2 sample pos. (double cuvettes), 3x reagent positions
• Incubation Temperature: 37.0°C ±0.2°C
• Language: English, German, French, Spanish, Italian, Portuguese
• Display: LCD 4 lines x 20 characters
• Thermal printer: Optilonal
• Hand-held Barcode scanner: Optional
• Unidirectional RS232 interface for LIS communication
• Net weight: 2.3 kg
• Gross weight: 3.8 kg
• Power Supply: Input: 100-240 VAC, 50-60 Hz, Output: 15 VDC
• Dimensions Instrument (LxWxH): 230x280x120 mm

ADVANTAGES:

• All coagulation tests in one instrument
• Quarter Volume Method reduces price/test
• Up to 5 calibration poibnts are storable
• Autostart function
