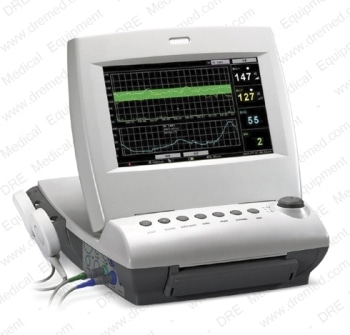

DRE Compact FM Fetal Monitor

Description

Compact fetal monitor with dual fetal heart rate and TOCO monitoring

Features

• 10.2" folding color widescreen
• Multi-crystal pulsed wave transducer
• FM marker, automatic fetal movement detection
• Signal overlap verification
• 12 hours data storage and review

Specifications

Physical Weight & Dimensions

• Dimensions: 347 × 330 × 126 mm
• Weight: Approx. 6 kg

Performance

• Display: 10.2" color TFT-LCD
• Resolution: 800 × 480
• Paper: Z-fold, thermosensitive
• Recorder: US/International Standard; 1/2/3 cm/min real-time printing speed; fast print speed (stored traces) up to 25 mm/sec

Ultrasound

• Technique: ultrasound pulse doppler with auto-correlation
• Pulse repetition rate: 2 KHz
• Ultrasound frequency: 1.0 MHz ± 10%
• FHR range: 50 bpm -240 bpm
• Accuracy: ±2 bpm

TOCO

• TOCO range: 0-100 relative (%)
• Resolution: 1 count
• Zero mode: Automatic / manual

Auto Fetal Movement

• Technique: Pulse doppler ultrasound
• AFM range: 0-100 (%)
• Resolution: 1%

Marking

• Manual fetal movement work

Battery

• 14.8 V rechargeable Lithium-ion battery
• Continual working time: 4 hours

Signal Interface

• RS-232 interface and Ethernet interface
