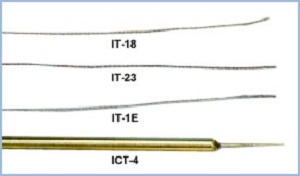

IT Series. Implantable in semi-solids and tissue with needle (supplied). Also for immersion in various solutions and rectal temperatures of small animals. Totally sheathed in chemical resistant Teflon. Quite rugged. Max Temp. 150°C. Isolated. Type # designates needle gauge. (Or one gauge smaller in thin wall).
IT-23 - For ultra fast measurements and for use on micro-size specimens. Sensor lead only 0.009" dia. Tissue implantable with 23ga. needle (supplied). Rather fragile. Max. temp. 150°C. Time constant 0.005 secs. 3 ft. lead. Teflon coated. Isolated.
IT-1E - As IT-18 but sensor bead exposed. Combines the ultra-fast response of IT-23 with the Teflon sheath strength of IT-18. Time constant .005 secs. Isolated.
|
Specifications |
|||
|
Type |
Dia. |
Time Constant |
Lead Length |
|
IT-14 |
.050" |
0.3 secs. |
3 ft. |
|
IT-18 |
.025" |
0.1 secs. |
3 ft. |
|
IT-21 |
.016" |
0.08 secs. |
1 ft. |
