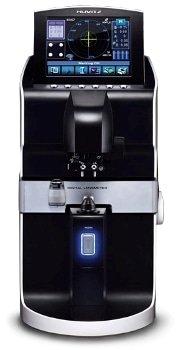

Huvitz introduces the new standard in design and digital technology. The HLM-7000 automated lensmeter is more beautiful, more comfortable and more stable. Using an advanced algorithm that allows for improved accuracy and speed, you can automatically measure all lens types. The HLM-7000 also features an extensive diopter measurement range and two separate prism modes, as well as a built-in PD sensor, exact UV level assessment, and the ability to measure even very small progressives. Other specialty features include a dark sunglass mode and an intuitive icon-based graphic interface. All this, plus a sleek, compact design featuring an adjustable LCD screen for comfortable viewing and operation make the HLM-7000 hard to beat.
Features of the HLM-7000 Lensmeter
- More Efficient Progressive Measurement
- Wide Measurement Range
- Two Prism Display Modes
- LCD with Adjustable Tilt
- Dark Sunglasses Mode
- PD Sensor
- Exact UV Levels
- Contact Lens Measurement
- Compact Lens Table
- Measure Small Progressives
- User-Friendly Graphic Interface
- TFT LCD: The Best in Image Quality
- Pen Type Marking
- Built-in Thermal Printer
- Compact Design
More Efficient Progressive Measurement
An advanced algorithm allows for automatic measurement of far and near sight addition with improved accuracy and speed.
Wide Measurement Range
An extensive diopter measurement range of +25D to -25D lets you measure a wide range of lenses.
Two Prism Display Modes
For high prism, operators can select the Ten Prism Display mode. For patients with normal and low prism, you can use the Five Prism Display mode.
LCD with Adjustable Tilt
Whether you prefer to sit or stand, the HLM-7000 provides comfortable viewing and operation with its color screen with adjustable tilt.
Dark Sunglasses Mode
The HLM-7000 features a Dark Sunglasses Mode, which allows you to more accurately measure even the most heavily tinted sun lenses.
PD Sensor
A built-in PD sensor allows easy measurement of the frame’s PD. Lens power can be captured simultaneously.
Exact UV Levels
Few lensmeters provide UV assessments with exact numerical values. The HLM-7000 provides an exact UV protection figure.
Contact Lens Measurement
The HLM-7000 offers fast and accurate measurement data of hard and soft contact Lenses. A uniquely designed soft contact lens measurement Jig* greatly improves stability when measuring soft lenses. (*Contact lens Jig is an optional accessory).
Compact Lens Table
Enjoy added freedom with the inclusion of a compact lens table, which allows you to measure children’s glasses and other smaller sized lenses.
Measure Small Progressives
The PD Bar and Measurement Nose can measure even the smallest progressives and multifocals.
User-Friendly Graphic Interface
A Graphic User interface provides intuitive guidance for easy operation. The unit’s well-designed icons facilitate use and increase efficiency.
TFT LCD: The Best in Image Quality
TFT LCD images provide improved clarity and increased brightness for even more efficient operation.
Pen Type Marking
A pen type marking assembly guarantees clean and precise lens marking.
Built-in Thermal Printer
Once your readings are complete, a built in printer quickly generates the results, which include an illustration of axis and PD that aid in understanding the data. Printer paper can easily be changed with a one-touch lever.
Compact Design
The newly designed HLM-7000 occupies far less table space than other high-tech units in its class.
Specifications
| Measurement Range | |
| Sphere Power | -25D ~ + 25.00D |
| Cylinder Power | 0 to ±10.00D |
| Cylinder Axis | 0°~180° (1° Step) |
| Add Power | 0 to +10D |
| Prism Power | 0 to 10 Δ |
| Precision | |
| Diopter Steps | 0.01 / 0.125 / 0.25D |
| Prism Power | 0.01 / 0.125 / 0.25Δ |
| Measurement Modes | |
| Cylinder | -,+,± |
| Prism | Rectangular / Polar / Displacement |
| Sampling Speed | 0.016 sec |
| LED Wavelength | 630 nm |
| Contact Lenses | Hard and Soft |
| ABBE Values | Manual Compensation |
| Wavelength | e-Line, d-Line |
| Measurable Lens Diameter | 0.6~4.53 in (15~115 mm) |
| Dimensions | |
| Display | TFT LCD Display (320 x 240 LED Backlight) |
| Data Output | RS-232C, Printer |
| Baud Rate | 9600, 19200, 38400, 57600, 115200 bps |
| Dimensions | 7.5(W) x 9.3(D) x 15(H) mm / 12.10 lb (190(W) x 237(D) x 377(H) mm / 5.5 kg) |
| Weight | 12.10 lb / 5.5 kg |
| Power Supply | AC 100-120 V / AC 220-240 V 50 / 60 Hz |
|
Designs and details can be changed without prior notice for the purposes of improvement |
|
