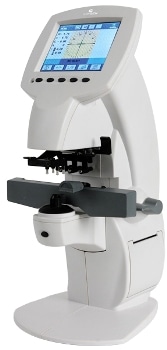

The Luxvision LM-7000 Digital Lensmeter provides more accurate measurements.
Now your staff can obtain accurate lens measurements with minimal training. The LM-7000 auto lensmeter provides repeatable, objective measurements every time. It is easy to use, reduces operator error, and eliminates the subjectivity inherent in manual lensmeter readings. The LM-7000 can easily and accurately measure all lens types, including single vision lenses, multifocals, and progressive addition lenses. This affordably priced all-digital unit makes upgrading to automated lensometry easier than ever.
Features of the LM-7000 Lensmeter
- Easy to Operate
- Measures All Lenses
- UV Measurement
- Pupillary Distance Measurement
- Contact Lens Measurement
- Space-Saving Vertical Orientation
- LCD Screen
- Thermal Printer
Easy to Operate
Eliminate the subjective nature of manual lensmeter readings with the easy-to-use LM-7000. Even inexperienced operators can obtain accurate lens measurements in seconds. This Luxvision unit will reduce operator error and provide repeatable, objective measurements every time.
Measures All Lenses
Progressive lenses will no longer present a challenge with the LM-7000. This all-digital unit quickly and accurately measures every lens type.
UV Transmittance Measurement
The LM-7000 provides UV penetrability measurements on all lens types.
Pupillary Distance Measurement
PD measurement is easy to obtain by placing frames onto the unit's nose bridge bracket.
Contact Lens Measurement
A special contact lens bracket quickly replaces the standard lens bracket for easy contact lens measurement.
Space-Saving Vertical Orientation
Save valuable work space with the vertically designed LM-7000.
LCD Screen
Operators will enjoy the 4.7-inch full-color LCD display featuring high-resolution graphics.
Thermal Printer
Once your readings are complete, a built in printer quickly generates the results.
Specifications
| Measurement Range | ||
| Spherical Lens | -25.00D~+25.00D (Reading increment step: 0.01D 0.06D 0.12D 0.25D) |
|
| Contact Lens (spherical lens) | -25.00D to +25.00D (BC=6.00~9.00) (Reading increment step: 0.01D 0.06D 0.12D 0.25D) |
|
| Cylinder Lens | -10.00D~+10.00D ( - , ± , + ) (Reading increment step: 0.01D 0.06D 0.12D 0.25D) |
|
| Cylinder Lens Axis | 0°~180° (reading increment step: 1°) | |
| Addition | -10.00D~+10.00D (Add, Ad2) (Reading increment step: 0.01D 0.06D 0.12D 0.25D) |
|
| Prism | 0.00Δ~15.00Δ (Reading increment step: 0.01Δ) |
|
| PD Value | Single eye PD: 20 mm~39.5 mm Double eye PD: 40 mm~85 mm Accuracy: 0.5mm |
|
| UV Penetrability | 1%~100% step: 1% 5% |
|
| Cylinder Lens Measurement Mode | ( - , ± , + ) | |
| Prism Measurement Mode | Right angle coordinate (X-Y): base in/out, base up/down Polar coordinate (P-B): Δ, θ |
|
| Display | 4.7 inch multicolor monitor screen | |
| Chinese/English Menu Cursor | ||
| Applicable Lens Diameter | 20 mm~100 mm | |
| Power | AC (110 V~220 V) ±10%: 50/60 HZ | |
| Max Power | 40 W | |
| Weight | 3.6 Kg | |
| Dimensions ( W x D x H ) | 194 mm x 210 mm x 408 mm | |
| Designs and details may be changed without prior notice for the purpose of improvement |
|
|
