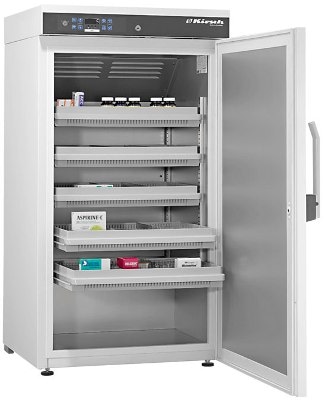

Pharmaceutical Refrigerator MED-288 from Kirsch

Pharmaceutical Refrigerator MED-288 from Kirsch
  Nov 13, 2018


The pharmaceutical fridge features five vertically adjustable drawers made of plastic as standard equipment. The drawers rest on telescopic runners and have a locking element. Each drawer has 2 adjustable length dividers and 9 adjustable cross dividers.

  • 5 drawers, height adjustable
  • Individual drawer division with adjustable length and cross dividers.
  • Recirculating air-cooling
  • Optimized ventilation plates to minimize interior temperature differences
  • Automatic defrosting
  • Melt water evaporation
  • Easy-to-read LED temperature display
  • Easy accessible control panel with key switch
  • Micro-processor controlled temperature and thawing regulation to maximize temperature stability
  • Minimum/Maximum temperature memory
  • Safety control prevents freezing
  • Optical and acoustical alarm including power failure alarm
  • Potential free contact for alarm transmission
  • RS-485 interface for computer based temperature documentation

Options

  • Glass door with lock
  • Decorative frame
  • Castors
  • Additional drawers on rails, max. capacity of drawers per fridge: 8 drawers
  • Additional length and cross dividers
  • Top drawer lockable
  • Shelf 52,7 x 39 cm on rails or brackets (max. loading capacity: 40 kg)
  • LED illuminiation mounted on top
  • Melt water tray for manual emptying
  • GSM-Module
  • PC-KIT-NET (Network capable version), PC-KIT-STICK or
    PC-KIT-USB-MONITORING incl. documentation software
  • Pen-recording thermometer for placing loosely inside appliance with 2 waxed paper strips
  • Temperature probe PT 100 or PT 1000, 4 wire sensor, class 1/3 B, incl. measuring flask incorporated

Technical Specifications

Capacity

280  l

Temperature Setting (approx.)

+2 to +20 °C

Voltage

220 - 240 V

Frequency

50 / 60 Hz

Power Consumption

155 Watt

Normal Consumption

1,00 KW / 24 h

Overall Dimensions (incl. distance from wall)

67 x 70 x 124   (W x D x H in cm)

Interior Dimensions

53 x 50 x 100   (W x D x H in cm)

Usable Dimensions

usable depth above 5 cm, below 13 cm less

Overall Dimensions With Door Opened at 90°

67 x 130            (W x D in cm)

Drawer Inner Dimensions

50 x 32 x 5,6  (W x D x H in cm)

Max. Loading Capacity Per Drawer

16 kg

Weight

78 kg / 87 kg     (net / gross)

For more detail: https://www.kirsch-medical.de/en/products/pharmaceutical-refrigerators/med-288.html#download
