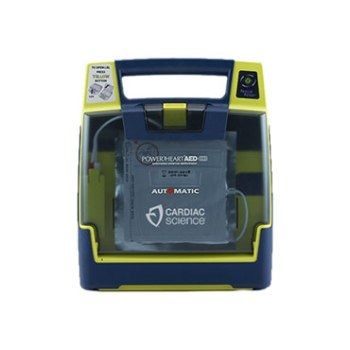

Powerheart G3 Plus Automatic AED from Cardiac Science.

The Powerheart AED G3 Plus is ideal for lay rescuers to use in public access defibrillation areas such as schools, athletic fields, and workplace environments

The Powerheart® G3 Plus AED is the flagship Cardiac Science automated external defibrillator (AED) that features Rescue Ready®, RescueCoach™, and STAR® biphasic technology to make your rescue as simple as possible.

Specifications

Defibrillator

• Operations: 9390A (fully automatic version)
• Waveform: STAR® biphasic truncated exponential
• Energy (J) range available: Escalating variable energy (VE) 95J to 351J
• Protocols: 5 energy protocols available
• Factory default (nominal): 200VE, 300VE, 300VE
• Voice prompts: RescueCoach voice instructions guide user confidently through rescue process
• Text screen: Displays rescue prompts to guide user through rescue process as well as additional critical rescue information for EMS responders
• Visible indicators: Rescue Ready status indicator, SmartGauge battery status indicator, service indicator, PAD indicator, text display
• Audible alerts: Voice prompt, system alert
• Synchronized shock: Built-in automatic synchronization feature
• Pacemaker pulse detection: Yes
• Programmable: Yes, via MDLink®
• Pediatric capability: Yes
• Warranty: 7 years
• CPR cadence: Metronome for compression frequency

Pads

• Minimum combined surface area: 228 cm (35.3 sq in)
• Extended length of lead wire: 1.3 m (4.3 ft)
• Supplied: Self-checking, pre-connected to the AED
• Type: Adult, pre-gelled, self-adhesive, disposable, non-polarized (identical pads can be placed in either position) defibrillation pads
• Shelf life: 2 years

Battery

• Type: IntelliSense® lithium battery
• Warranty: 4-year, full operational replacement

Automatic Self-Tests

• Daily: Battery, pads (presence and function), internal electronics, SHOCK/CONTINUE button, and software
• Weekly: Battery, pads (presence and function), internal electronics, partial energy charge, SHOCK/CONTINUE button, and software
• Monthly: Battery, pads (presence and function), internal electronics, full energy charge cycle, SHOCK/CONTINUE button, and software

Event Documentation

• Type: Internal memory
• Internal memory: 60 minutes ECG data with event annotation, multiple rescue functionality
• ECG playback: Viewable via Rescuelink® software via PC
• Communications: Serial port or USB (via adapter) for PC with Windows
• Clock synchronization: Rescue event time stamp of event data

Dimensions (H X D X W)

• DIMENSIONS (H x D x W): 8 cm x 31 cm x 27 cm (3.3 in x 12.4 in x 10.6 in)

Weight

• WEIGHT: 3.1 kg (6.6 lb)

Model Number

• 9390A-1001: Powerheart AED G3 Plus Automatic with 2010 AHA/ERC Guidelines protocols

Powerheart AED G3 Plus Automatic. Each AED package includes (1) defibrillator, (1) IntelliSense battery (9146), (1) pair of defibrillation pads, and (1) Quick Start Tool Kit including CD-Rom with AED Manual, Training Video, Rescuelink and MDLink, and serial communication cable.
