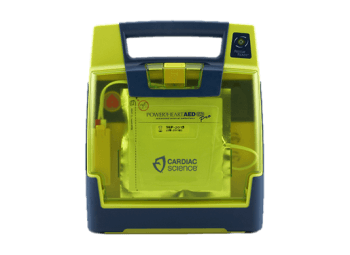

Powerheart G3 Pro from Cardiac Science

The Powerheart AED G3 Pro is designed for the professional rescuer with a color display screen, manual override, and 3-lead ECG monitoring capabilities.

With semi-automatic operation, manual override option, and 3-lead ECG monitoring capability, the Powerheart® G3 AED Pro gives medical professionals the tools you need to be in complete control.

Specifications

Defibrillator

• Operations: Semi-automatic with manual override
• Waveform: STAR® biphasic truncated exponential
• Energy (J) range available: Escalating variable energy (VE) 95J to 351J
• Protocols: 5 energy protocols available
• Factory default (nominal): 200VE, 300VE, 300VE
• Voice prompts: Clear, concise voice prompts guide user through the rescue
• Visible indicators: Rescue Ready status indicator
• Audible alerts: Voice prompt, system alert
• Synchronized shock: Built-in automatic synchronization feature
• Pacemaker pulse detection: Yes
• Programmable: Yes, via MDLink®
• Pediatric capability: Yes
• Warranty: 7 years
• Control buttons: Shock button and manual override
• Display content: Displays written instructions to guide user through rescue process, SmartGauge battery status indicator, service indicator, pad indicator, text display, ECG display
• Display specifications: 3.5 in (8.9 cm) diagonal transreflective TFT display with 320 x 240 pixels (quarter VGA). Resolution is 113.5 dots/in (4.47 dots/mm)

Pads

• Minimum combined surface area: 35.3 sq in (228 cm²)
• Extended length of lead wire: 4.3 ft (1.3 m)
• Supplied: Self-checking, pre-connected to the AED
• Type: Adult, pre-gelled, self-adhesive, disposable, defibrillation pads
• Shelf life: 2 years

Battery

• Type: 9145 IntelliSense® lithium battery
• Warranty: 1-year, or 12 hours of use whichever occurs first
• Type: 9144 rechargeable battery
• Warranty: 1-year

Automatic Self-Tests

• Daily: Battery, pads (presence and function), internal electronics, SHOCK/CONTINUE button, and software
• Weekly: Battery, pads (presence and function), internal electronics, partial energy charge, SHOCK/CONTINUE button, and software
• Monthly: Battery, pads (presence and function), internal electronics, full energy charge cycle, SHOCK/CONTINUE button, and software

Event Documentation

• Type: Internal memory
• Internal memory: 60 minutes ECG data with event annotation, multiple rescue functionality
• ECG playback: Viewable via Rescuelink® software via PC
• Communications: Serial port or USB (via adapter) for PC with Windows
• Clock synchronization: Rescue event time stamp of event data

Dimensions (H X D X W)

• DIMENSIONS (H x D x W): 3.3 in x 12.4 in x 10.6 in (8 cm x 31 cm x 27 cm)

Weight

• WEIGHT: 6.6 lb (3.1 kg)

Model Number

9300P-1001: Powerheart AED G3 Pro Automated External Defibrillator Each AED package includes: (1) defibrillator, (1) IntelliSense battery (9145), (1) pair of defibrillation pads, and (1) Quick Start Tool Kit: includes Quick Start Guide, CDROM with AED Manual, Training Video, Rescuelink and MDLink
9300P-601: Powerheart AED G3 Pro Automatic External Defibrillator with Rechargeable Battery. Battery charger sold separately Each AED package includes: (1) defibrillator, (1) Rechargeable Battery (9144), (1) pair of defibrillation pads, and (1) Quick Start Tool Kit: includes Quick Start Guide, CD-ROM with AED Manual, Training Video, Rescuelink and MDLink

Readiness

Rescue Ready® technology that self-checks all main AED components (battery, hardware, software, and pads) daily.  The AED completes a partial charge of the high-voltage electronics weekly, and a full charge monthly

Advanced Technology

RescueCoach™ and CPR metronome functionality pace users through chest compressions.  In addition, our proprietary STAR® biphasic technology calculates electrical impedance and escalates energy to deliver therapy at an appropriate higher level should a patient require a second shock.

Assurance

Cardiac Science stands behind our Powerheart G3 AEDs with a 7-year warranty, among the longest in the industry, and a 1-year full battery operational replacement guarantee.
