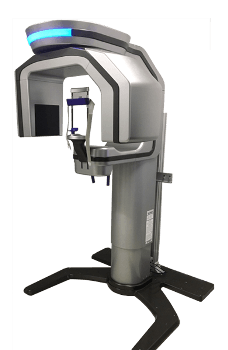

PreXion3D Excelsior CBCT Scanner

PreXion3D Excelsior CBCT Scanner
  Nov 22, 2018

The PreXion3D Excelsior CBCT Scanner is the evolution of our original flagship product designed for dentists who demand the highest diagnostic clarity and detail. Uses include, but are not limited to: Implant placement, bone quality studies, pathology, periodontics and endodontics. It is compatible with all DICOM compliant 3rd party implant surgical guide and CAD/DICOM merging software programs.

Clinical Applications

  • Implant placement surgery
  • Endodontics
  • Periodontics
  • Oral-Maxillofacial surgery
  • TMJ
  • Pathology
  • Impacted and Supernumerary teeth
  • DICOM Export for implant surgical guides & CAD/CAM integration
  • Airway analysis

Highlights

  • Accurate 360 degree gantry rotation
  • 260-1,024 projected views
  • Dedicated 2D pan mode option
  • Clearest detail with 0.3 mm focal spot & 0.1-0.2 mm voxel

Scan Modes

Standard Mode 9.6 seconds
Rapid Mode (Lower Dose) 5.2 seconds
High Definition Mode (HD) 12.8 seconds
Ultra High Definition Mode (UHD) 17.9 seconds, 23.6 seconds
Wide Mode 9.6 seconds
CT-TMJ Mode 5.2 seconds x 2
CAD CAM Mode 17.9 seconds
Panoramic Standard Mode 10 seconds

3D Software

ALL Prexion3D CBCT scanners include The Prexion3D Viewer software at no additional charge. It contains easy modules for evaluating dedicated 2D Panoramic, 2D Cephalometric, and 3D images. Prexion provides the clinician with the most accurate assessment of the bone and surrounding anatomy while making 1:1 exact measurements.

ALL Prexion3D CBCT scanners include The Prexion3D Viewer software at no additional charge. It contains easy modules for evaluating dedicated 2D Panoramic, 2D Cephalometric, and 3D images. Prexion provides the clinician with the most accurate assessment of the bone and surrounding anatomy while making 1:1 exact measurements.

This assures optimal implant placement without the superimposition of tissue or projection distortion compared to conventional panoramic systems. Prexion3D reconstructs to DICOM 3.0 format and is compatible with major 3rd party surgical planning software systems.

Specifications

Device Type CBCT + 2D Panoramic
Field of View (DxH) 150 mm X 80 mm; 100 mm X 80 mm; 100 mm x 50 mm; 50 mm x 50 mm
CBCT Sensor CsI FPD 16 bits
X-ray Tube Voltage 60 – 110 kV
Focal Spot 0.3 mm x 0.3 mm
Voxel Size 0.1 mm – 0.2 mm
Patient Position Standing; wheel chair accessible
Included Computers Single Console & Viewer Computer (Network Client is available)
