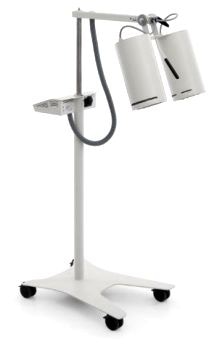

Phototherapy Device Solmed DUO
The Solmed DUO Phototherapy Device Irradiation lamp with 2 radiators is intended for treatment by heating the skin tissue using the heat produced by the infrared light. The lamp can be used to cure some of the chronic and subacute inflammatory states and pain syndromes. It can also be used as a preparation treatment before a massage, manual therapy, iontophoresis or kinesitherapy.
Product Features
- infrared light emission
- 2 radiators - in the heads of the unit
- adjustable heads
- adjustable height of the stand by means of a gas spring
- light source equipped with a cooling fan and a filter mounting system
- variable radiation power
- adjustable duration of the treatment
- control panel with buttons:low-profile wheeled base for easy moving (4 , which fits under massage tables
- START /PAUSE
- STOP
- SOURCE SELECTION button
- SETUP button (adjusting the power and duration of treatment)
- PROGRAM button (programming the sequence of treatment by setting up different power levels for each time interval)
Standard Components
- unit with 2 heads
- bulb (2)
- red filter (2)
- blue filter (2)
- big protective goggles for the operator (1)
- small protective goggles for the patient (1)
- assembly kit
- instruction
Technical Data
|
Power supply: |
230 V / 50 Hz |
|
Maximum bulb power: |
375 W |
|
Power consumption: |
max. 770 W |
|
Dimensions: |
800 x 485 x 1720 mm |
|
Weight: |
about 30 kg |
|
Duration of treatment: |
30 min |
|
Power adjustment: |
10 - 100 % |
|
Medical device class: |
II a |
