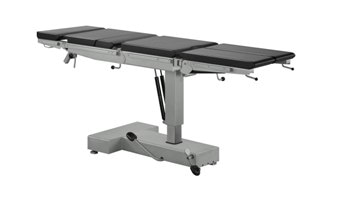

SU-02 Operating Table from FAMED Medical Solutions

Designed for procedures in the range of general surgery, vascular surgery, cardiosurgery, neurosurgery, urology, proctology, gynaecology, laryngology, ophthalmology, endoscopy, laparoscopy, traumatology, oncology, dentistry, plastic surgery and others. Full range of specialist equipment is introduced inside “Operating tables equipment” catalogue.

TECHNICAL DATA SU-02

• Total table length equipped with 4 or 5 segment table top: 2035 mm 2035 mm 2035 mm
• Total table length equipped with 6-segment table top: 2160 mm 2160 mm 2160 mm
• Total table top width: 550 mm 550 mm 550 mm
• Mattress width x thickness: 500 x 50 mm 500 x 50 mm 500 x 50 mm
• Table top height adjustment: 725 to 1025 mm 745 to 1045 mm 725 to 1025 mm
• Trendelenburg position: 30° 30° 30°
• Reverse Trendelenburg position: 30° 30° 30°
• Lateral tilts: ±25° ±25° Lack of
• Back rest segment adjustment: -40° to +85° -40° to +85° -40° to +85°
• Head rest adjustment: -50° to +55° -50° to +55° -50° to +55°
• Kidney elevator height adjustment (5 and 6 segments table top): 150 mm 150 mm 150 mm
• Leg rests Inclination angle adjustment (4 and 5 table top segment): -90° to +25° -90° to +25° -90° to +25°
• Leg rests Inclination angle adjustment (6 table top segments): -90° to +90° -90° to +90° -90° to +90°
• Leg rest segment Inclination aside angle adjustment: 180° 180° 180°
• Permissible load (leg rest segment fixed in seat segment / leg rest segment in back rest segment: 200 / 135 kg 200 / 135 kg 200 / 135 kg
• Table weight: 160 kg 105 kg 105 kg
