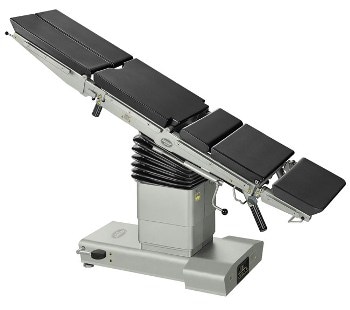

SU-03 Operating Table from FAMED Medical Solutions

Universal operating table SU-03 is designed for supporting the patient during procedures in the range of general surgery, vascular surgery, cardio surgery, neurosurgery, urology, proctology, gynaecology, laryngology, ophthalmology, endoscopy, laparoscopy, traumatology, oncology, dentistry, plastic surgery and others. The entire offer of additional equipment is presented in the “Equipment for operating tables” catalogue.

TECHNICAL DATA SU-03

• Total table top length (with head rest): 2035 mm (± 15 mm)
• Table top width: 500 mm (± 5 mm)
• Total table top width: 550 mm (± 5 mm)
• Table top height adjustment: 740 to 1140 mm (± 20 mm)
• Trendelenburg position: 40°
• Reverse Trendelenburg position: 40°
• Lateral tilt: ± 30°
• Back rest segment adjustment: -45 (± 2°) to +85° (± 5°)
• Head rest segment adjustment: -50° to +55°
• Kidney elevator adjustment height: 150 mm (± 5 mm)
• Kidney elevator adjustment angle: 110°
• Inclination angle adjustment of undivided leg rests: -90° to +25°
• Inclination angle adjustment of divided leg rests: -90° to +45°
• Maximum leg rest segment inclination: 180°
• Table top longitudinal shift: 350 mm (± 15 mm)
• Battery power: 24 V DC
• Power supply: 230/127/110/100 V ~, 50/60 Hz
• Power consumption: 100 VA
• Maximum permissible load static / dynamic: 350 kg/200 kg
• Total table weight: 250 kg
• Class of protection against electric shock: I
• Type part of the application: B
• Degree of protection against environmental influences: IP-X4
