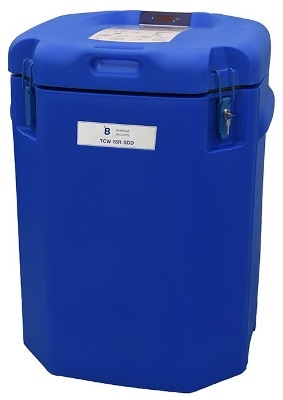

The new TCW 15 SDD is a combination of a solar direct drive vaccine refrigerator and ice pack freezer, specially designed for small size health centres, working straight from solar panels with no batteries and no regulator.
No Batteries and No Regulator
Solar Generator – Plug & Play Installation
The TCW 15 SDD goes with one solar generator. It connects to the TCW 15 SDD by quick connectors – only one way works.
The solar generators are available in 2 versions:
Additional Information
Vaccine Storage Capacity (l) |
16 |
Ice Pack Storage Capacity (0.6 l) |
4 |
External Dimensions (H x W x D) (mm) |
946 x 734 x 710 |
Shipping Dimensions H x W x D (mm) |
1088 x 770 x 778 |
Outer Material |
Polyethylene |
Interior Material |
Polyethylene |
Insulation |
Polyethylene |
Insulation Thickness (mm) |
100 |
Temperature Class |
+5 °C – +43 °C ambient temperature (Climate zone: Hot) |
Refrigerant Type |
R600a |
Voltage (V) |
12 – 20 |
Icelining |
Ice packs act as ice bank during power cuts |
Scope of Delivery |
1 x Basic Toolkit, 1 x Compass, 1 x Lockable lid, 1 x Vaccine storage basket, 2 x Spacers, 4 x Waterpacks 0.6 l (& holders) |
