Ultra Fine IT-Series Flexible Microprobe from Physitemp

Ultra Fine IT-Series Flexible Microprobe from Physitemp
  Dec 07, 2018

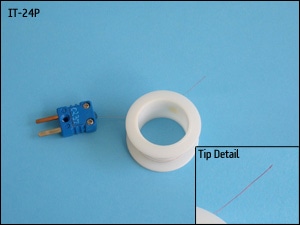

IT-24P - Tiny, 24 gauge polyurethane coated wire with polyester insulated thermocouple bead.

For research applications to measure temperature in animal brains and other tissue. Fairly fragile, but very fast responding. Wire cross section .005” x .0025” Insulated tip maximum outside diameter .009”.

Length 36” supplied on 1” diameter protective spool as shown.

Time constant .004 seconds. Maximum temperature 70°C. Sterilization by Gas (ETO).

Specifications

Type

Dia.

Time Constant

Lead Length

IT-24P

.009"

0.004 secs.

3 ft.


For more detail: https://www.news-medical.net/ads/abmc.aspx?b=2087

Request a Quote
for Ultra Fine IT-Series Flexible Microprobe from Physitemp
